Common Features to above PTZs:
- built-in receiver, high speed pan/tilt, camera, lens and housing
- Control format: RS-485
- Multiple protocols: Pelco-D, P, Santach, Panasonic, MinKing, Longcomity, Hunda600, Taiyo, Vicon, Molynx, Kalate, VCL, Daiwa, ALIC, Ultrak
- RS-485 Baud rate selection: 1200bps, 2400bps, 4800bps and 9600bps
- Dedicated motor-driven pan/tilt accurate positioning
- 360º continual pan without blind point
- Horizontal speed 0.8º~240º/s
- Vertical speed 0.8º~240º/s
- Preset target calling speed 240º/s (Max)
- Vertical scan range 90º
- Auto-flip 180ºand proportional speed control
- >480 Lines NTSC (576Lines PAL)High resolution color to 0.7 Lux for all. Auto-shift to B&W from 0.7 to 0.01 Lux, at >570 TV lines
- Autoscan between two presets at different speeds
- Memorize and auto re-trace scan pattern for SC series
- 64 presets with titles, 128 presets for SC series
- Back light compensation on/off
- On screen display on/off
- White balancing
|
Zoom only Camera & Housing
|
| HexaCam X220 |
22x optical, 10x digital Zoom, Color Camera, 0.07 Lux, 480 lines |
| HexaCam X230B |
23x optical, 10x digital Zoom 1 Lux and above color, 0.01 - 1 Lux B&W, 480 lines |
| HexaCam 3909F |
(9")Outdoor Spherical Pan & Tilt Unit |

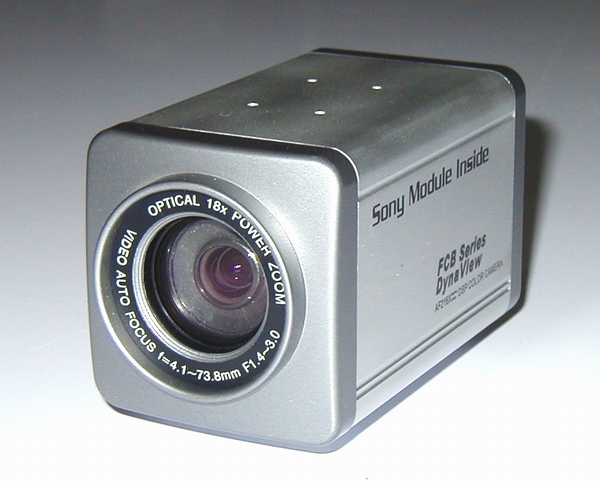

X220 and X230B Zoom Color Camera
CCTV High-Resolution Color Camera with DSP. and X22/X23 Power Zoom.
The Camera come in the compact metal frame so you can install it in the casing of your choice. The camera's built-in X22/X23 optical zoom lens is highly reliable and offers auto focus, auto iris and zoom functions, letting the user monitor a scene from any desired angle of view. In conjunction with X10 digital Zoom, the total Zoom ratio is X220/X230B.
The chassis is equipped with a high-sensitibity, high-resolution 1/4-inch CCD pickup featuring approximately 470,000 pixels and 480 TV-Lines.
|
Signal Format: |
NTSC |
|
Scanning System: | 2:1 Interlacing |
| Image Sensor: |
1/4: Color CCD |
| Horizontal: |
15.734KHz |
| Vertical: |
59.94Hz |
| Total Pixels: |
410K, 811 (H) x 508 (V) |
| Lens for X220: |
X22 Optical Zoom Lens, F1.6 f=4 ~ 88MM, x 10 electronic Zoom, The total Zoom ratio X220 |
| Lens for X230B: |
X23 Optical Zoom Lens, F1.6 f=4 ~ 88MM, x 10 electronic Zoom, The total Zoom ratio X230B |
| Angle of View: |
Horizontal 47.3 degrees (Wide), 2.2 degrees (TELE) |
| Min.Focal Distance: |
0.01m (Wide), 1.0 (Tele) |
| Signal Process: |
DSP-IIIR
DSP-6; D.S.S. Camera |
| Minimum Illumination for X220: |
0.07 Lux, Colour
0.06 Lux (1/3s); 0.03 Lux(1/1.5s); D.S.S. Camera |
| Minimum Illumination for X230B: |
1Lux and above colour
0.01 - 1Lux, B&W
0.06 Lux (1/3s); 0.03 Lux(1/1.5s); D.S.S. Camera |
| Horizontal Resolution: |
More than 480 TV lines |
| S/N: |
More than 50dB |
| Sync System: |
Intenal/External |
| Camera Control: |
Control through RS232C |
| Optical Zoom: |
TELE-WIDE (Zoom Speed: 3.9s/6.3s) |
| Digital Zoom: |
Off/On (up to x 10) |
| Focus: |
Auto/Manual |
| White Balance: | Auto/Manual |
| Electronic Shutter: |
Auto/Manual: 1/60~ 1/30,000s
Auto: 1/2~1/3~1/4000s
Manual: 1/2 ~ 1/30,000s |
| Iris Control: |
Auto/Manual |
| Special Cotnrol D.S.S.Camera: |
Privacy Zone Masking, Mirror, Image Freeze, Mosaic |
| Video Output: | BNC - type, 0.714± 0.07Vp-p at 75 ohms load
BNC - type, 1.0± 0.2Vp-p at 75ohms load; D.S.S. Camera |
| Supplied Voltage: | DC12V ± 0.5V |
| Power Requirement: |
4.7W (Max) |
| Operating Temperature: |
0° ~ +60° C (Recommended:0° ~ +40° C) |
| Operating Humidity: |
10~ 85% |
| Weight: |
580g |
| Dimensions (WxHxD): | 62x74x120mm |
HexaCam 3909F
Outdoor Spherical Pan & Tilt unit
| Specifications: |
| Fixed Moving |
| Horizontal Direction: |
Pan Range: 0-358°
Moving Speed: 12°/Sec |
| Vertical Direction: |
Tilt Range: 0-90°
Moving Speed:12°/Sec |
|
Power Supply: |
24VAC |
| Auto Scanning Function |
| Adjustable Pan & Tilt Range Degree |
Converter, Keyboard Controller
& Drivers for PTZ
|
| HexaCam-RS-1 |
RS232-RS485 converter |
| HexaCam-2820 | PTZ keyboard controller with presets and joystick |
| HexaCam-D3 | DUR PTZ driver with RS485 and protocol support
|
| HexCam-RS1 |
 |
Normal RS232/RS485 Converter
Interface compatible with ELA/TLA of RS-232 & RS-485
HexaCam-RS1 converter can convert the Data (TD) and Receive Data (RD) of RS-232C serial port to serial to 2 wire half-duplux RS-485 signal. It's the best choice for long distance control devices and point to multi-point bus communications. This interface converter can work without power supply. It can "steal" power from TD signal, RTS signal of RS-485 port or DTR data terminator. It also has a plus function called Automatic Send Data Line Control, this is means that it doesn't need change the hardware configuration or instal software. Perfectly surge protection ensures your RS-485 network security. |
| Transfer Speed: |
| Distance | speed |
| 300m | 115.2Kbps |
| 1200m | 19.2Kbps |
| 2400m | 9600bps |
| 3000m | 2400bps |
Transfer Distance: Max 5000m (Speed 1200BPS)
Size: 88mm * 33mm * 17mm
Environment: Temperature -25 to 70 centigrad degree, Humidity 5% to 95%
|
| HexaCam-2820 |
 |
Master keyboard for matrix system
Matrix / PTZ Driver Connection
Lock-out and password operation function
Joystick control PAN/TILT & Speed dome
Multiple keyboards cascade connection
Alarm function
|
| HexaCam-D3 |
 |
General Use PTZ Driver, multiple protocols support
Power Supply: 110VAC
Power supplied to positioning device: 110VAC/2.0A or 24VAC/800mA
Power supplied to camera: 12VDC/500mA
Power supplied to lens: 6V-12V/500mA
|
|
