CCTV Cameras Lenses
H.264 cctv cameras, PTZ cameras H.264 lens
Professional Cameras
Mini Dome Cameras
PTZ Cameras
Infrared Cameras
Auto iris monofocal lens
Mono focal lens
Accessories




Mini Dome Cameras

1. Mini Dome Camera - IDC-TS288NI: new, >480 lines, non-flickering, IR cut, 0.01Lux, 3.8 - 8mm auto iris lens
2. Mini Dome Camera HexaCam- 8311
3. Mini Dome Camera HexaCam- 8310
4. Mini Dome Camera HexaCam- 8313
5. Mini Dome Camera HexaCam- 8411
6. Vandal Proof Dome - IVC-TS288NI: new, >480 lines, non-flickering, IR cut, 0.01Lux, 3.8 - 8mm auto iris lens


Mini dome: IDC-TS288NI

Vandal Proof IVC-TS288NI




Image Sensor 1/3" SONY Super HAD CCD
CCD Total Pixels PAL:795(H)x 596(V)
NTSC:811(H) x 508(V)
Minimum Illumination Color to 1 Lux, B&W to 0.01 Lux
Resolution >480 TV lines for color, >570TV lines for B&W
White Balance AUTO/ATW/1,2,3 Balance
AGC 0 to -18db
S/N Ratio >50dB
Auto IRIS DC drive
Back Light compensation Yes
Temperature -10ºC - 45ºC
Power  DC12V
Camera lens Direct drive auto iris 3.5 - 8mm lens included
Housing Black plastic for normal mini-domes,
Aluminium with PVC and allen nut locking for vandal proof



Mini Dome Camera                     HexaCam- 8311


Image Sensor 1/3" SONY ExView Color CCD
CCD Total Pixels 795(H) x 596(V)
Minimum Illumination 0.01 Lux F1.2
Resolution 480 TVL
White Balance Auto White Balance
AGC Built-In (On)
S/N Ratio >48dB
Electronic Shutter  1/50~1/100,000 sec
Back light compensation Auto Detect
Temperature -20ºC-50ºC
Humidity <85%
Video Out BNC 1.0Vp-p,75ohm
Power  DC12V / 120mA
CCTV camera lens Click here for your choice of mono focal lens

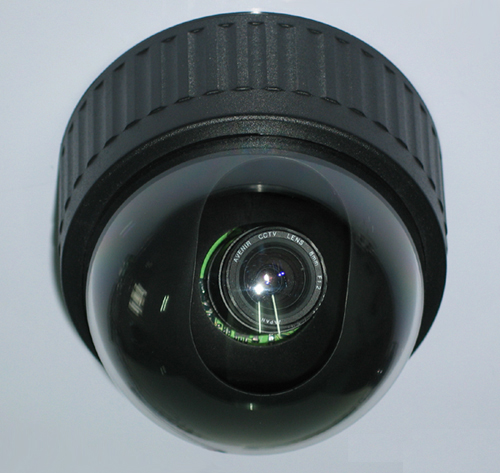

Mini Dome Camera                      HexaCam- 8310


Image Sensor 1/3" SONY Super HAD Color CCD
CCD Total Pixels 795 (H) x 596 (V)
Scanning System 625 lines, 50 fields/sec
Minimum Illumination 0.8 Lux F1.2
Resolution 480 TVL
White Balance Auto White Balance
S/N Ratio >48dB
Gain Control Digital correction AGC: 18/26dB
Back light Compensation Built-In (On)
Temperature -20ºC-50ºC
Humidity <85%
Video Out BNC 1.0Vp-p,75ohm
Power  DC12V / 120mA
CCTV camera lens Click here for your choice of mono focal lens

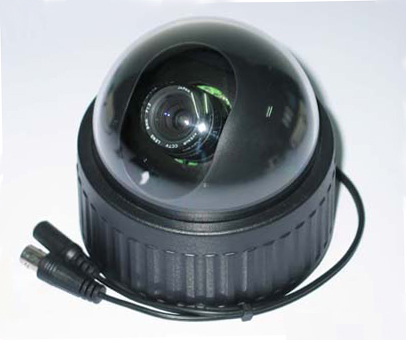

Mini Dome Camera                      HexaCam- 8313


Image Sensor 1/3" SONY Color CCD
CCD Total Pixels PAL:500(H)x 582(V)
NTSC: 510(H) x 492(V)
Minimum Illumination 0.8 Lux F1.2
Resolution 420 TVL
White Balance Auto White Balance
AGC Built-In(On)
S/N Ratio >48dB
Electronic Shutter  1/50~1/100,000sec
Back light compensation Auto Detect
Temperature -20ºC-50ºC
Humidity <85%
Video Out BNC 1.0Vp-p,75ohm
Power  DC12V / 120mA
CCTV camera lens Click here for your of mono focal lens

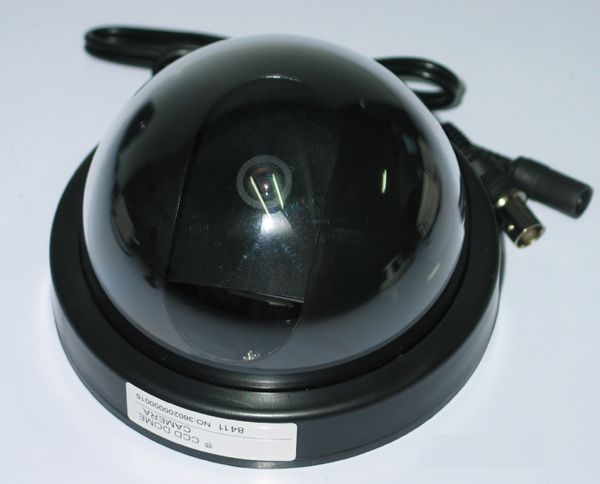

Mini Dome Camera                     HexaCam- 8411


Image Sensor 1/4"  Sharp Color CCD Image Sensor
CCD Total Pixels PAL:500(H)x 582(V)
NTSC:510(H) x 492(V)
Minimum Illumination 2.0 Lux F1.2
Resolution 380 TVL
White Balance Auto White Balance
AGC 0 to -18dB
S/N Ratio >48dB
Electronic Shutter 1/50~1/100,000 sec
B.L.C. Function ON
Temperature -20ºC-50ºC
Humidity <85% RH
Video Out BNC 1.0Vp-p,75ohm
Power  DC12V / 110mA
CCTV camera lens 3.6mm lens included
