 Accessories




HexaCam Accessories

1. Audio Box
2. HexaCam-0808 Alarm Controller
3. HexaCam-RS1 Normal RS232/RS485 converter
4. Key Board Controller
4. DVR PTZ Driver HexaCam-D3
4. DVR PTZ Driver HexaCam-D4

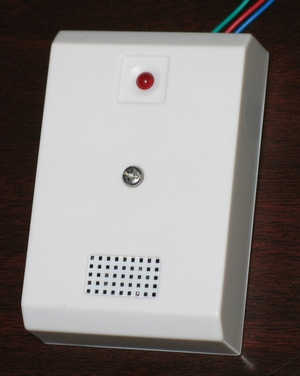

HexaCam SA-01


Audio Box
  Power Supply:     12VDC / 3.5 mA
  Output Signal       7.8p-p
   Working Area:     100m2
   Max. Cable Length:       1000M



HexaCam-0808


Alarm Controller


alarm controller Introduction
This equipment is an alarm controller used for anti-theft, fire prevention, door alarm and remote surveillance etc. It can capture spot alarm information more than 1 kilometer away and transmit to a computer. It provides 8 ports Sensor In and 8 ports Data Out that can be used for light, alarm, loudspeaker and cameras etc.

   Alarm In:       8-port normal open/normal close input voltage 0~+V
   Alarm out:      8-port normal open/ normal close connector
   Power Supply:      DC12V 10W
   Communication Protocol:       Half Duplex RS-485
   Output Power:       10A / DC28V, or 7A / AC220V
   Size:       182mm X 120mm X 30mm



HexaCam-RS1


RS232/RS485 converter


alarm controller Introduction
HexaCam-RS1 converter can convert the Transfer Data (TD) and Receive Data (RD) of RS-232C serial port to 2 wire half-duplex RS-485 signal. It's the best choice for long distance control devices and point to multi-point bus communications. This interface converter can work without power supply. It can "steal" power from TD signal, RTS signal of RS-485 port or DTR data terminator. It also has a plus function called Automatic Send Data Line Control, this is means that it doesn't need change the hardware configuration or install software. Perfectly surge protection ensures your RS-485 network security.


alarm controller Specification
   Interface compatible with ELA/TLA of RS-232 and RS-485
  Transfer Speed:
   Distance      Speed
   300m       115.2KBPS
   1200m      19.2KBPS
   2400m       9600BPS
   3000m       2400BPS
   Transfer Distance: Max. 5000m (Speed 1200BPS)
   Size: 88mm x 33mm x 17mm
   Environment: Temperature -25 to 70 centigrade degree, Humidity 5% to 95%.

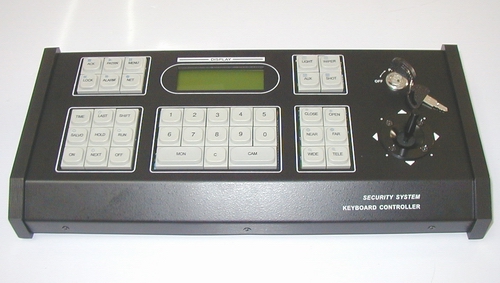

HexaCam-2820


PTZ Key Board Controller
Master key board controller
Matrix / PTZ Driver Connection
Password operation function
Gearlever Control PAN/TILT & Speed Dome
Multiple Keyboards cascade connection
Alarm function




HexaCam-D3
DVR PTZ Driver
General use PTZ Driver, multiple protocols support
Power Supply: 220VAC
Power supplied to positioning device: 220VAC/2.0A or
24VAC/800mA
Power supplied to camera: 12VDC/500mA
Power supplied to lens: 6V-12V/500mA




HexaCam-D4
DVR PTZ Driver
Inddor PTZ Driver, multiple protocols support
Power Supply: 220VAC
Power supplied to positioning device: 220VAC/1.5A or
24VAC/800mA
Power supplied to camera: 12VDC/500mA
Power supplied to lens: 6V-12V/300mA
