IIC-TS288NH : 480 lines IIC-TS38NH :420 lines  |
|
| Image Sensor | 1/3" SONY Super HAD Color CCD |
| CCD Picture Elements | PAL:500(H)x582(V) NTSC:510(H)x492(V) |
| System of Signal | PAL/NTSC |
| Usable Illumination | 0 Lux (Infrared Lamps turn on) |
| Horizontal Resolution | 480 TVL for IIC-TS288NH 420 TVL for IIC-TS38NH |
| Sync System | Internal Synchronization |
| S/N Ratio | >48dB |
| Gamma Characteristic | 0.45 |
| Electronic Shutter | 1/50(1/60)~1/100,000sec |
| Video Out | BNC 1.0Vp-p at 75 ohm |
| Built in Lens | 6mm/F1.5 |
| Housing | Vandal proof Aluminum Alloy |
| Infrared Lamps Irradiation | 850mm |
| Infrared Wavelength | 25m |
| Infrared Lamps | Night/Day Opening/Turn off |
| Power Consumption | 12VCD, 120mA (when the infrared Lamps turn on maximum electricity is 300mA) |
Infrared Camera

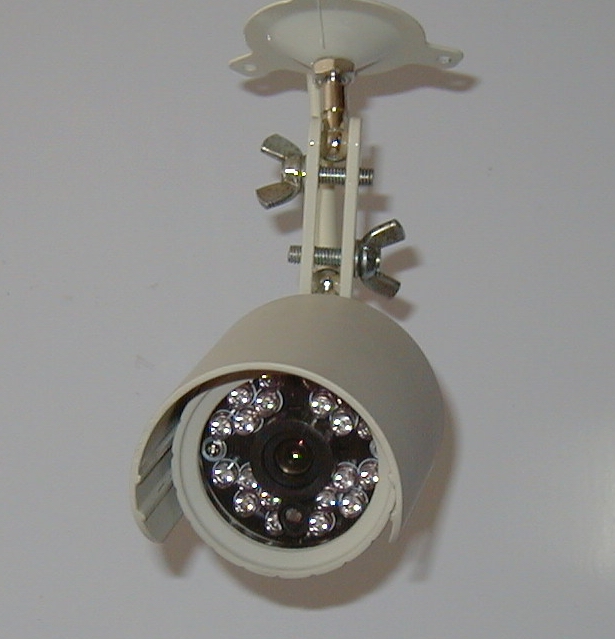

HexaCam-5420 | |
| Image Sensor | 1/4" Sharp Color CCD |
| CCD Total Pixels | PAL:500(H)x582(V) NTSC:510(H)x492(V) |
| System of Signal | PAL/NTSC |
| Usable Illumination | 1.0 Lux/F1.2, 0Lux(Infrared Lamps turn on) |
| Horizontal Resolution | 420 TVL |
| Electronic Shutter | 1/50~1/120,000sec |
| S/N Ratio | >50dB |
| White balance | Auto |
| Video Out | Composite output 1.0Vp-p at 75ohm |
| Built in Lens | 3.6mm/F2.0/68º |
| AGC | Auto |
| Temperature | -20ºC - 50ºC |
| Size | 60mm(L)x ø52mm |
| Infrared Lamps | 10m/35º |
| Power Consumption | 12VDC, 210mA |
HexaCam-4315R | |
| Image Sensor | 1/3" Sharp Color CCD |
| Picture Elements | PAL:500(H) x 582(V)NTSC:510(H) x 492(V) |
| System of Signal | PAL/NTSC |
| Sync System | Internal Synchronization |
| Horizontal Resolution | 420 TVL |
| Useable Illumination | 0 lux (Infrared lights turned on) |
| S/N Ratio | 48dB |
| AGC | Built-in (on) |
| Eletronic Shutter | 1/50(1/60)-1/100,000sec |
| Video out | BNC 1.0 p-p at 75 ohm |
| Power Consumption | 12VDC, 120mA (When the infrared lamps turned on maximum electricity is 120mA) |
| Built-in Lens | 3.6mm/F1.5 |
| Housing | Aluminum Alloy |
| Infrared Wavelength | 850mm |
| Infrared Lamps Irradiation Distance | 15m |
| Infrared Lamps | Night/Day Opening/Turn off |
