Central Monitoring Features |
 |
-
|
Monitors
up to 320 video channels |
- |
Real-time
audio monitoring |
- |
Real-time
I/O monitoring |
- |
Two-way
audio communication |
- |
Remote
PTZ control |
- |
Remote
I/O control |
- |
Automatically
popup live video when subscriber site's motion detection
or alarms occurs |
- |
Twin-View
support; allows video and event list to be displayed in
two different screens |
| -
|
Supports
15, 24, 25, and 36 screen divisions |
| ¡@ |
| Event
List Features |
|
|
| -
|
Displays
7 categories of event messages, including motion events,
alarm events, subscriber login/logout history, connection
status, and etc... |
- |
"Bookmark"
feature, allow user to highlight important events |
- |
Event
list filters; an user-friendly event list search engine |
| ¡@ |
|
Recording
Features |
|
|
- |
Auto
record video events to local hard disk |
- |
Pre-alarm
and post-alarm recording |
- |
Receive
video attachment along with each event |
- |
HDD
recycle feature, allowing non-stop recording |
| ¡@ |
|
Dispatch
Server |
|
|
- |
Central
managing up to 500 Center V2 servers |
- |
Capable
of providing services for up to 10,000 subscribers |
- |
Auto
connection lost recovery |
- |
Subscriber
load balancing, distributes subscriber request across
a group of Center V2 Servers. |
| ¡@ |

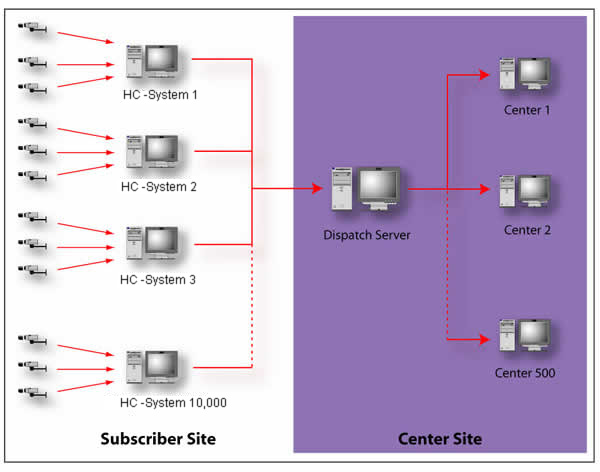

| System
Diagram |
|
|
|
| ¡@ |
| Model
Comparison |
|
|
|
Features |
Center
V2 |
Center
V2 Pro |
Dispatch
Server |
| Maximum
# of channels |
80 |
320 |
160,000 |
| Maximum
# of subscribers |
5 |
20 |
10,000 |
| Maximum
# of Center V2 |
N/A |
N/A |
500 |
| Maximum
# of Sensors / Alarms |
360/720 |
1,440/2,880 |
720,000/1,440,000 |
| Real-time
audio monitoring |
YES |
YES |
NO |
| Remote
PTZ control |
YES |
YES |
NO |
| Remote
I/O control |
YES |
YES |
NO |
| Auto
recording |
YES |
YES |
NO |
| Event
list viewer |
YES |
YES |
YES |
| Event
list filter |
YES |
YES |
YES |
| Twin-View
support |
YES |
YES |
NO |
| Load
balancing support |
NO |
NO |
YES |
| Auto
connection lost recovery |
NO |
NO |
YES |
|
|
