The
LPR (Licensed Plate Recognition) system uses Neural
Networks technology, a special
artificial intelligence method to identify vehicles by their
license plates. The LPR system integrates with various I/O
devices, such as access- control system, and use CCTV cameras

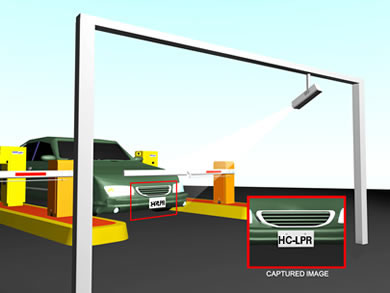

to capture images of the plate. For example, when a vehicle
approaches the gate, the LPR software "reads" the
license plate, signals to the parking gate, and keeps a time
record on the entry or exit of the parking lot for automatic
payment calculations. LPR can be used in parking management,
stolen car search, traffic monitoring, etc.
|
- Public and Private Parking Management |
|
- Automatic Toll Collection |
|
- Border Control |
|
- General Traffic Enforcement |
|
- Stolen Car Search |
| |
HC-LPR
1 |
HC-LPR
2 |
HC-LPR
3 |
| #
of Lane |
1
Port |
2
Ports |
4
Ports |
| Total
FPS |
30fps |
60fps |
120fps |
| FPS
/ Camera |
30fps |
30fps |
30fps |
| Image
Format |
BMP |
|
| |
HC-LPR
1 |
HC-LPR
2 |
HC-LPR
3 |
| CPU |
PIII-800
|
PIII-1G |
P4 |
| RAM |
256MB |
256MB |
256MB |
| VGA |
Nvidia
GeForce II MX200 |
| HDD |
40GB |
40GB |
80GB |
| OS |
Win
98SE, ME, 2000, XP |
|
*All
specification are subject to change without prior notification.
|
 |
| - |
All
types of vehicles are recognizable |
| - |
Full
plate or partial plate
recognition adjustable |
| - |
Setup
numbers of captured images for comparison |
| - |
Recognition
time: 0.2-0.3 seconds (less than 1 sec.) |
| - |
Users
can choose to [Save], [Advise] or [ActiveI/O device] after
recognition/comparison |
| - |
Unauthorized
plates will
activate the system to send immediate alarm to guard or
police force. |
| - |
Recognition
Rate: 99.9% |
| - |
Record
in BMP format.
5~8 million entries in a
40GB HDD. |
|
- |
Record
each vehicle's entrance and exit time |
|
- |
Digital
Watermarking |
| - |
Support
Recycle and Backup features |
| - |
Input/modify
data of [Car holder], [Plate number] and [Contact Info]
in the database for management and data analysis purpose |
| - |
Can
be connected with multiple I/O devices such card reader,
ticket-out system, and gate control system, etc... |
| - |
Provide
[Hot Key] to manually activate I/O devices. |
| - |
Supports
plug-in applications such as access control, proximity
reader, coin & token units. |
| - |
Support
various combination of sensors (0-8 sets) to avoid false
alarms.
|
| |
|
|
